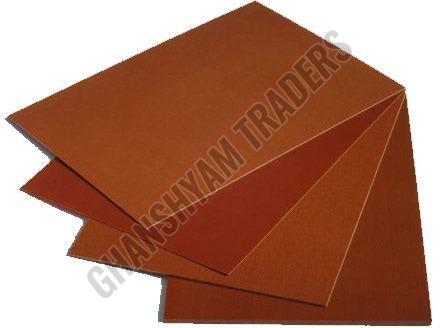

Paper Phenolic Sheet


Paper Phenolic Sheet
Price : 140.00 / Piece(s)
Get Best Price
Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Shape Square
Thickness 3mm-100mm
Width 1000-2440 Mm
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Tensile Strength
Less Than 100MPa
Density
1.45 g/cm3
Rated Voltage
40KV

We are a reckoned Supplier of Paper Phenolics in Gujarat, India. The Phenolics are designed and prepared by our team of adroit professionals under the stringent supervision of experts. They are obtained by pressing the multiple layers of resin impregnated filler materials in hydraulic press under high temperature & high pressure. The Phenolics are available with us in number of grades, which are tailored to meet international quality standards. They are widely used as insulating material.

Grades: Characteristics and Application :
E-P1 : Very good mechanical & adequate electrical properties, suitable for low-tension, non- humid application
Applications: Battery eliminator, transformer & choke bobbin, tube light ends, control panel, condenser mountings, drill back up and drill entry and bobbin industries.

E-P2 : Combination of good electrical & mechanical properties especially suitable for power industry and use in oil.
Applications: Transformer covers, C.B.handles and side frames, distribution board fuse base etc.

E-P3 : Excellent electrical and adequate mechanical properties, low water absorption suitable for high tension electric applications even under tropical conditions.
Applications: Transformer & choke bobbin for power electronic, relay spacers, grid covers, selector bank insulation etc.

Yes! I am interested


TECHNICAL PROPERTIES AND SPECIFICATION

  UNITS E-P1 E-P2 E-P3
TENSILE STR5ENGTH (min.) kgf/cm2 850 720 550
FLEXURAL STRENGTH (min.) kgf/cm2 1340 1340 860
SHEAR STRENGTH(min.) kgf/cm2 765 715 620
IMPACT STRENGTH(min.) kgf/cm2 4.1 3.05 2
COMPRESSION STRENGTH (min.) kgf/cm2 860 860 860
ELECTRICAL STRENGTH(Proof Voltage)
a. Flatwise ( for 1.6mm thickness) kv - 15 15
b. edgewise kv - 15 20
INSULATION RESISTANCE (min.) MW 1 54 1000
WATER ABSORPATION of 1.6mm(max.) mg 220 150 35
POWER FACTOR (tan) at 1MHz - - - 0.05
PERMITTIVITY AT 1 MHz - - - 5.8
THICKNESS (RANGE) AVAILABLE mm 0.8 to 100.0 0.8 to 100.0 0.8 to 100.0
PUNCHABILITY (Maximum thickness limit)   Hot 2.5mm Hot 2.5mm Hot 2.5mm
